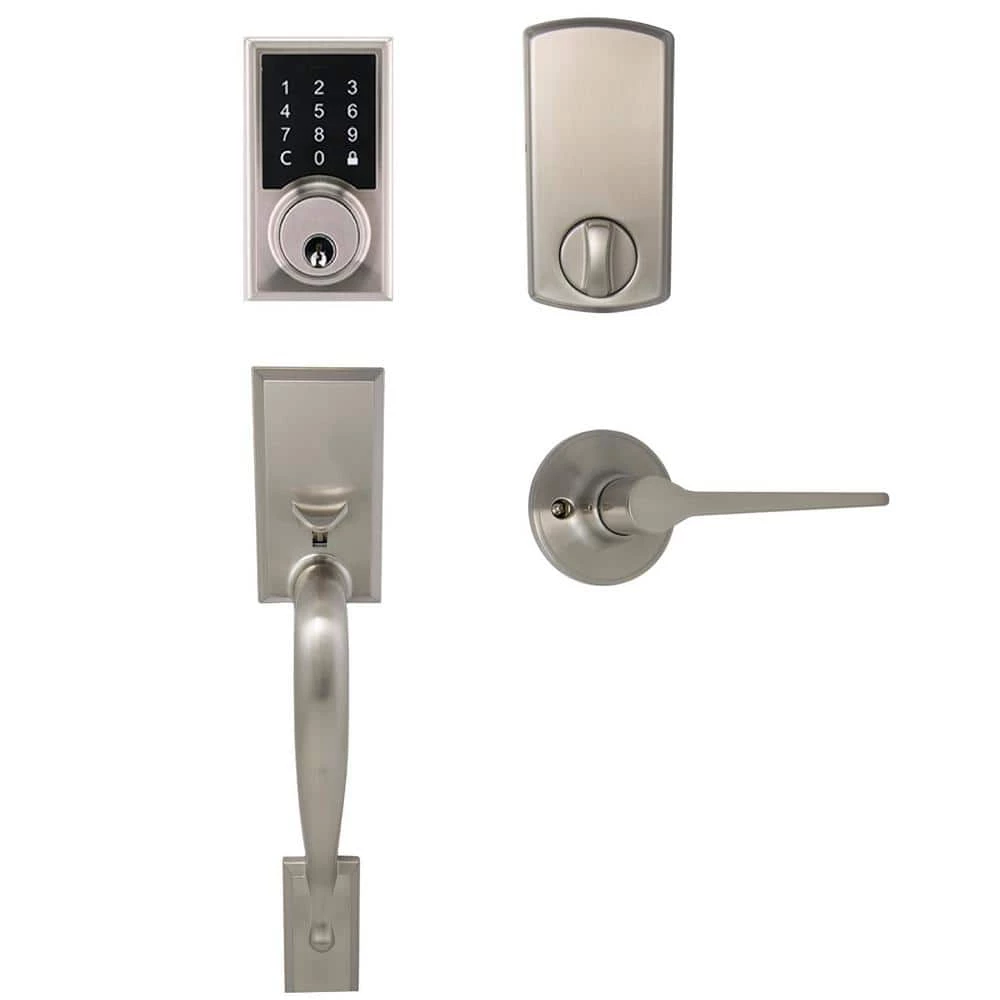

Defiant Alexander Satin Nickel Door Handleset with Square Electronic Single Cylinder Touchpad Deadbolt & Freedom Interior Lever
Original price was: $69.88.$44.72Current price is: $44.72.
- Protect Your Wallet with Safe Payments
- 100% High Quality Guarantee
- Secure Shopping with Safe Payments
- 7 Days of Hassle-Free Returns
Defiant Alexander handle set with Square Single Cylinder Touchpad Deadbolt lockset features keyless entry technology that helps to bring peace of mind without the worry of losing keys. With a radius latch and an adjustable backset and optional drive-in feature, this set can be installed on any entry door that has a door thickness between 1-3/8 in. to 1-3/4 in. This set can be re-keyed to match your existing KW1 key. It is also backed by a 1-year electronic guarantee and protected with a powder-coated finish that will provide years of durability. User-friendly features include ease of installation, simple operation and customizable programming.
- Ideal for entry doors
- Simple installation, no hard wiring required
- Anti-saw rod for added safety
- ANSI/BHMA grade 3 security
- 1 master code, 10 user codes
- Vacation mode option (user codes can be turned off as needed)
- 2 keys included
- Can be installed on doors 1-3/8 in. to 1-3/4 in. thick
- Low battery indicator
- Backlit keypad for enhanced visibility
- Not suitable for gates or other fully exposed doors
| Application Type | Entry w/ Deadbolt |
|---|---|
| Knob/lever housing width (in.) | 2.5 |
| Deadbolt Strike Width (in.) | 1 in |
| Deadbolt Throw Length (in.) | 1 in |
| Deadbolt Trim Ring Diameter (in.) | 2.68 in |
| Faceplate Depth (in.) | 0.047 in |
| Faceplate Height (in.) | 2.244 in |
| Faceplate Width (in.) | 1 in |
| Handle grip length (in.) | 14.56 |
| Inside top plate length (in.) | 2.5 |
| Inside top plate width (in.) | 2.5 |
| Knob/lever bore hole diameter (in.) | 2.125 |
| Knob/lever cross bore diameter (in.) | 1 |
| Knob/lever housing height (in.) | 2.5 |
| Knob/lever strike height (in.) | 2.25 |
| Deadbolt Cross Bore Diameter (in.) | 1 in |
| Knob/lever strike width (in.) | 1 |
| Knob/lever throw length (in.) | .5 |
| Maximum Door Thickness (in.) | 1.75 |
| Minimum Door Thickness (in.) | 1.375 |
| Outside bottom handle plate length (in.) | 2.5 |
| Outside bottom handle plate width (in.) | 1.5 |
| Outside key plate length (in.) | 0 |
| Outside key plate width (in.) | 0 |
| Outside top handle plate length (in.) | 4.5 |
| Outside top handle plate width (in.) | 2.75 |
| Projection (in.) | .49 |
| Strike Plate Height (in.) | 2.175 in |
| Deadbolt Strike Height (in.) | 2.75 in |
| Deadbolt Bore Hole Diameter (in.) | 2.125 in |
| Battery Type | AA Battery |
| Hardware Included | Lock with Handleset |
| Commercial/Residential | Residential |
| Deadbolt Type | Single Cylinder Deadbolt |
| Deadbolt strike | Round corner |
| Door Handing | Universal |
| Door Lock Style | Modern |
| Door Locks & Knobs Product Type | Keyed Handlesets |
| Electronic/Mechanical | Electronic |
| Features | Adjustable Backset,Alarm,Automatic Relocking,Backlit,Combination,Delay Timer,Easy Installation,Indicator Light(s),LED Backlight,Low Battery Indicator Light |
| Finish | Satin Nickel |
| Handleset Product Type | 2 Piece Front & Back |
| Hardware Color Family | Nickel |
| Hardware Finish Family | Nickel |
| Holding force (lb.) | 1124 |
| Backset Size (in.) | Adjustable |
| Included | Drilling Template,Hardware,Installation Instructions,Mounting Hardware |
| Keyway | KW1 |
| Knob/lever strike | Round corner |
| Lock Type | Keyed,Keypad |
| Material | Zinc |
| Number of Batteries Required | 4 |
| Power Source | Battery |
| Product Weight (lb.) | 5.35 lb |
| Returnable | 90-Day |
| Security/ANSI Grade | ANSI Grade 3 (Good) |
| Total Number of Keys Included | 2 |
| Manufacturer Warranty | 1 Year Electronic Warranty |
| Strike Plate Width (in.) | 1 in |
